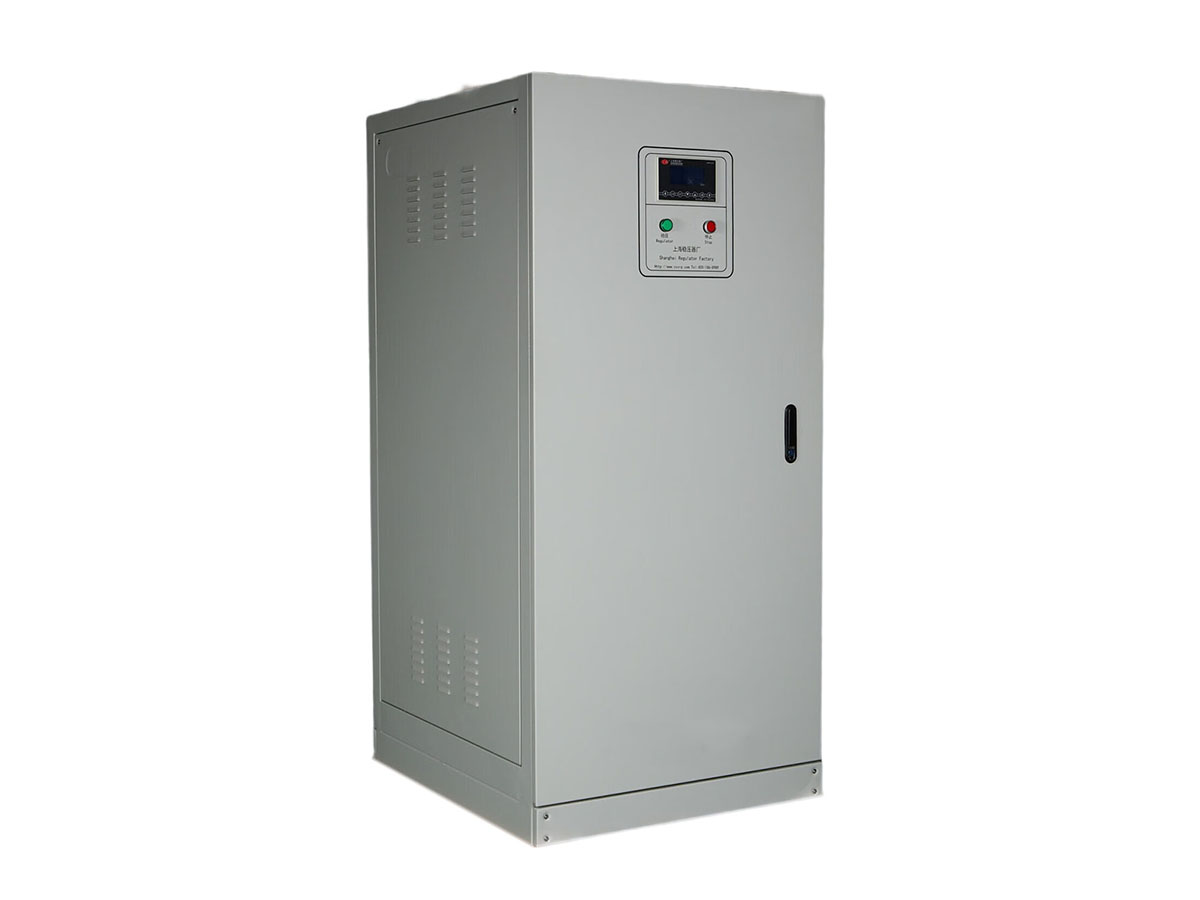

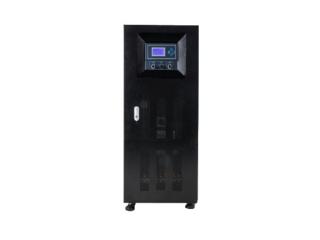

Static Voltage Stabilizer (OptiV MAX)
Static Voltage Stabilizer (OptiV MAX)
  • Whatis Voltage Optimization.pdf Whatis Voltage Optimization.pdf
  • OptiV MAX .pdf OptiV MAX .pdf
Share This Product:
  • Product Detail
  • Benefits
  • Features
  • Specifications

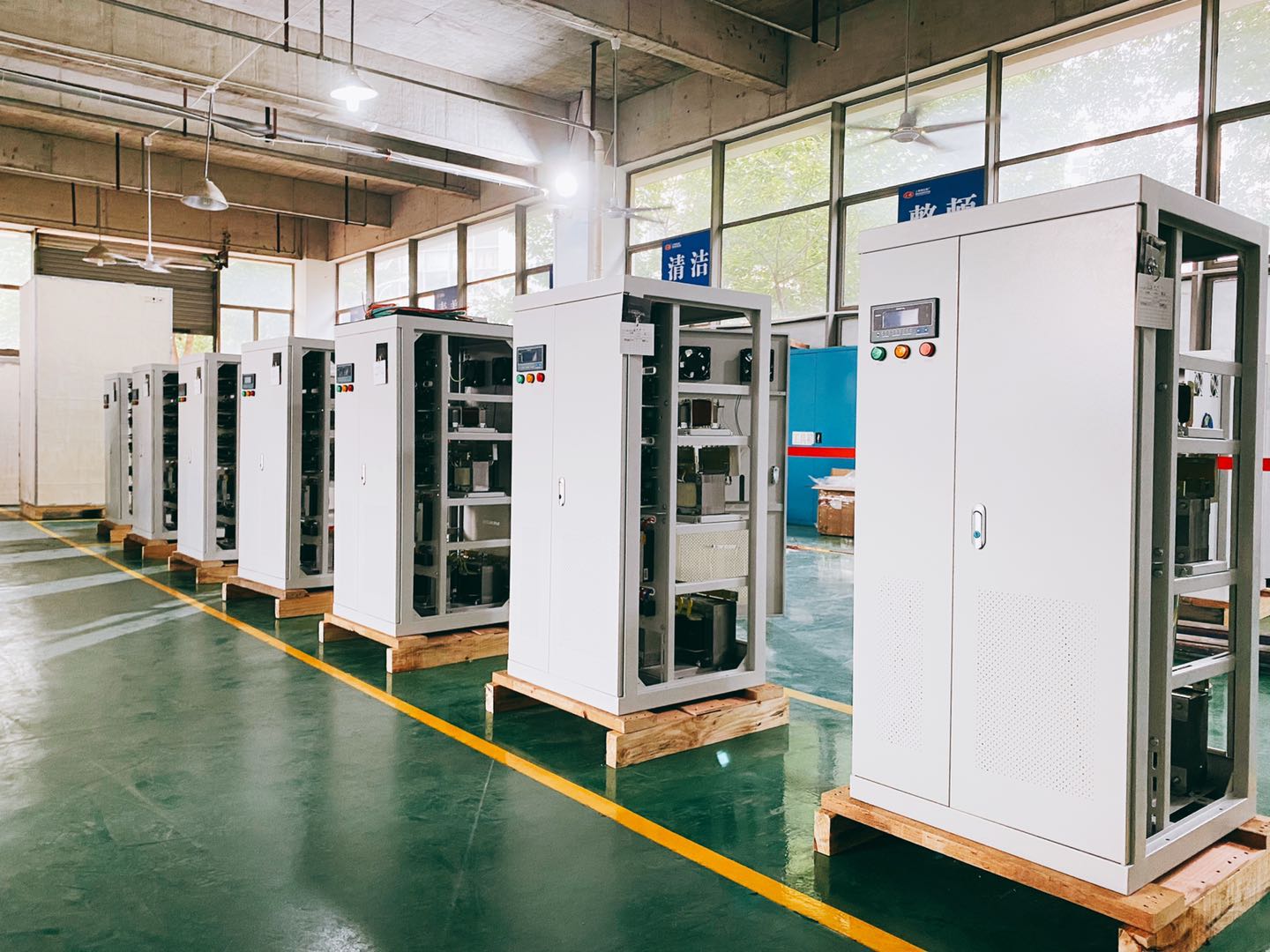

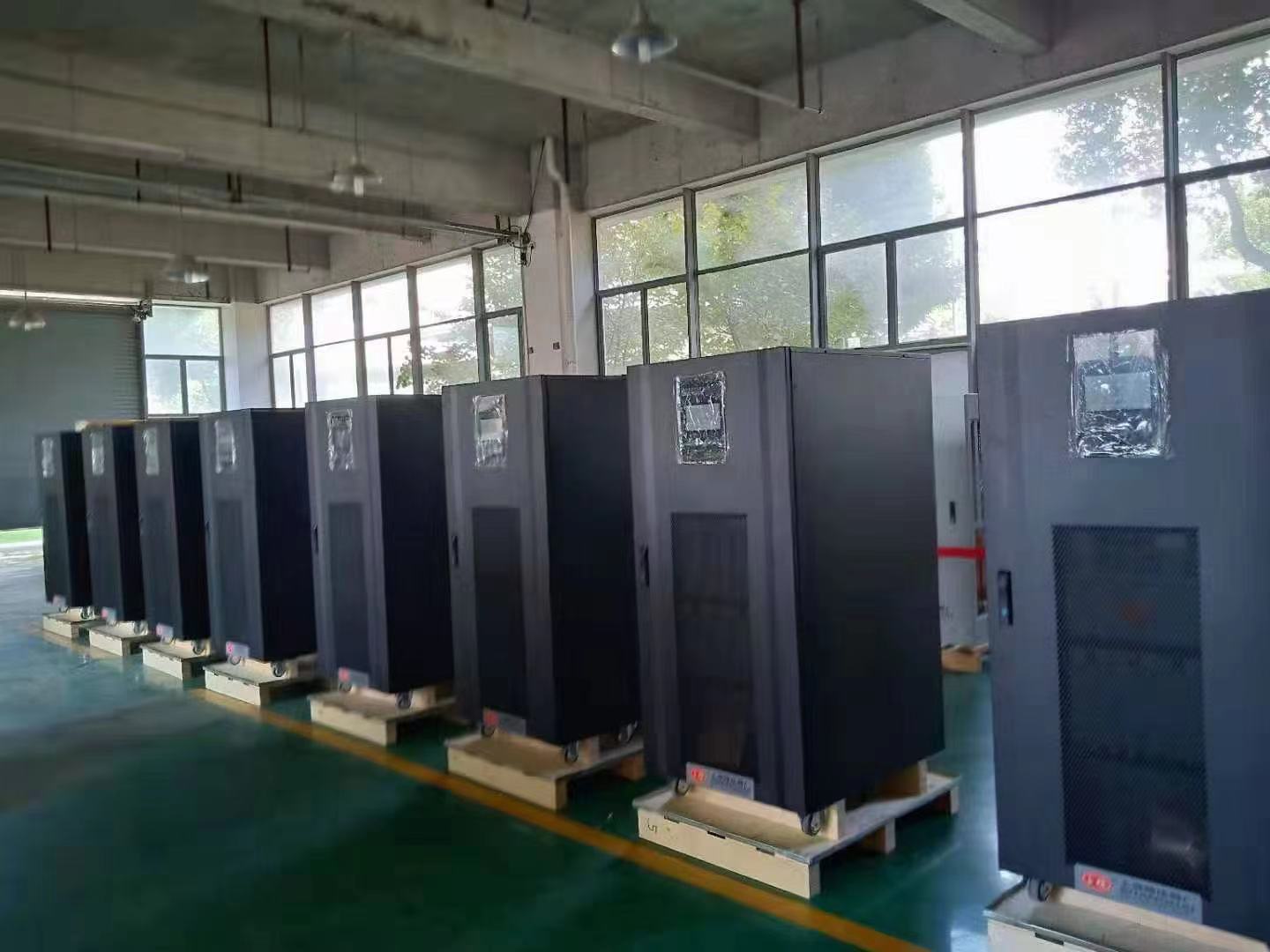

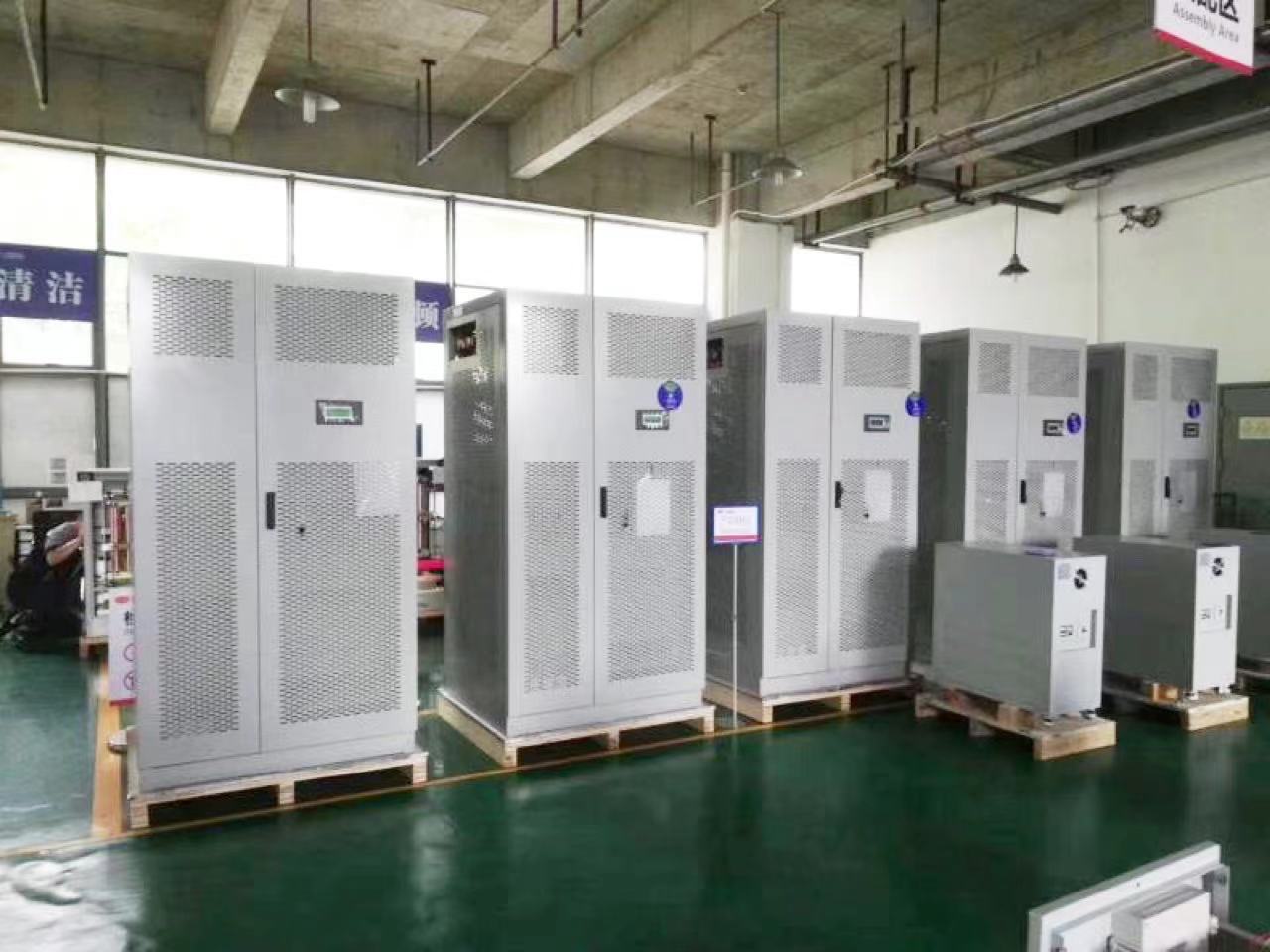

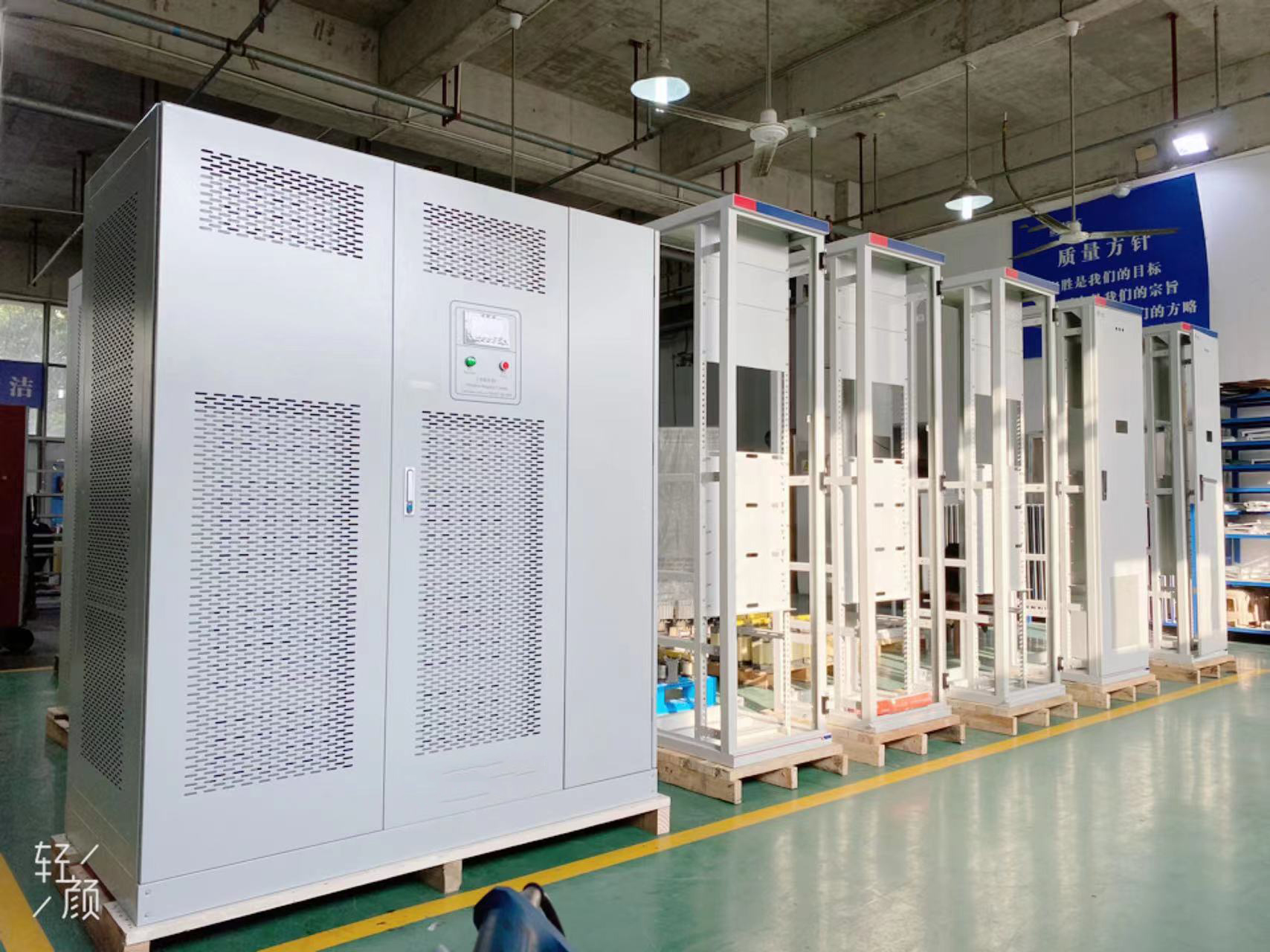

  • FACTORY SHOW

Average savings of 11%-17% on energy consumption in countries like Australia, UK
Reduces carbon emissions
Manages Phase balancing
Protect against damaging transients (power spikes)
Reduce operating temperatures of motors. Improves life expectancy of equipment and reduces maintenance costs

Silent design without moving brushes or rollers, High reliability and low maintenance
LCD HMI to monitor the voltage, current, fault stage, operation mode. Easy to set up the operation mode, output voltage and precision>
Double level, full protections and alarms against power spikes, over/under voltage , phase loss, over load and short circuit
Peak efficiency is upto 99%
Independent or dependent phase voltage imbalance regulation. Changeable through LCD display on site.
Automatic bypass keeps the load powered. Manual bypass available according to the order.
Fast response speed, digital controls and operation for monitoring, performance, accuracy and customization.
Phase voltage and output voltage. various indexes can be set
Remote monitoring by RS-232 (changeable to RS485, CAN )

Model OptiV MAX 3kVA to 3200kVA
Rating Single Phase:
3kVA(13.5A), 5kVA(22.5A), 10kVA(45A), 15kVA (68A),20kVA(91A), 30kVA (137A),
50kVA (228A)

Three phase:
10kVA(15A), 20kVA(30A), 30kVA (46A), 50kVA (76A), 80kVA (121A), 100kVA(152A)
120kVA(182A), 150kVA(228A), 180kVA(273A), 200kVA(300A), 225kVA(342A)
250kVA(380A), 320kVA(486A), 400kVA(608kVA), 500kVA(760kVA), 600kVA(912A)
800kVA(1216A), 1000kVA(1520A), 1200kVA(1824A),1400kVA(2127A)
1600kVA(2431A), 2000kVA(3040A), 2500kVA(3800A), 3200kVA(4860A)
Input voltage 380V/220V±15% (Standard), input voltage and tolerance can be custom
made in GridStone
Output voltage 380V/220V ± 1.5-7% adjustable ( Details refer to combination table of input
voltage range and output voltage regulation accuracy)
phase Single phase (3 to 50 kVA) or three-phase (10 to 3200 kVA)
Electric insulation strength AC2000V/5mA, without leakage or breakdown in 1 minute
efficiency upto 99%
Waveform distortion <1%
Work frequency 50~60Hz
voltage regulation accuracy 1.5%, 2%, 2.5%, 3%, 3.5%, 4%, 5-7% Optional
Response Time 10ms
Stabilization time 100ms
Noise Smaller than 55dB
