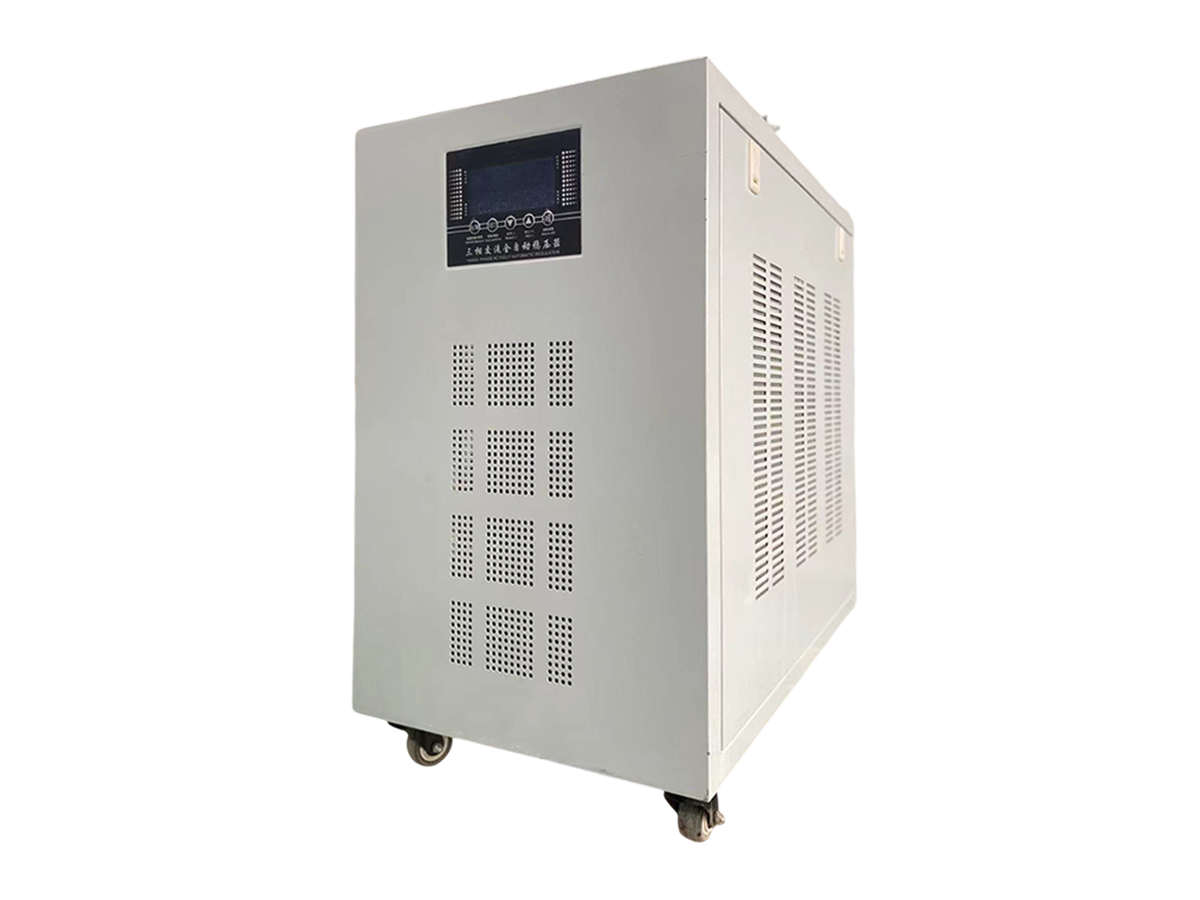

Electro-Mechanical voltage regulator/stabilizer (AVR) Integration of E type compensation transformer and toridal variable transformer. LCD HMI. Digital display of the voltages, current and fault record. Digital circuit control system. Protections against over load, over/under voltage, short circuit Independent phase regulation Manual bypass is optional. MOV lighting surge protection is optional Warranty 2 years
|
Frequency |
50hz or 60hz programmable |
|
Display |
LCD screen with input voltages, output voltages, current and alarm |
|
Response time |
10ms |
|
Correction time |
Within 1 second for 10% voltage regulation |
|
Bypass |
Manual bypass ( Optional ) |
|
Cooling |
Air cooling |
|
Over load |
1. 300% 1sec, 150% 20 sec, 100% to 120% 15mins. |
|
Power Factor |
0.95 - 1 |
|
Cabinet |
IP21 , R7035 |
|
Environment temp. |
- 15℃ to 40 ℃ |
|
Humidity |
< 90% |
|
OptiV ECO-S 15 |
OptiV ECO-S 20 |
Input Voltage |
323V to 430V / 343V to 450V |
304V to 430V / 324V to 450V |
Output Voltage |
380V / 400V +/- 8V |
380V / 400V +/- 8V |
