Average savings of 11%-17% on energy consumption in countries like Australia, UK
Reduces carbon emissions
Manages Phase balancing
Protect against damaging transients (power spikes)
Reduce operating temperatures of motors. Improves life expectancy of equipment and reduces maintenance costs

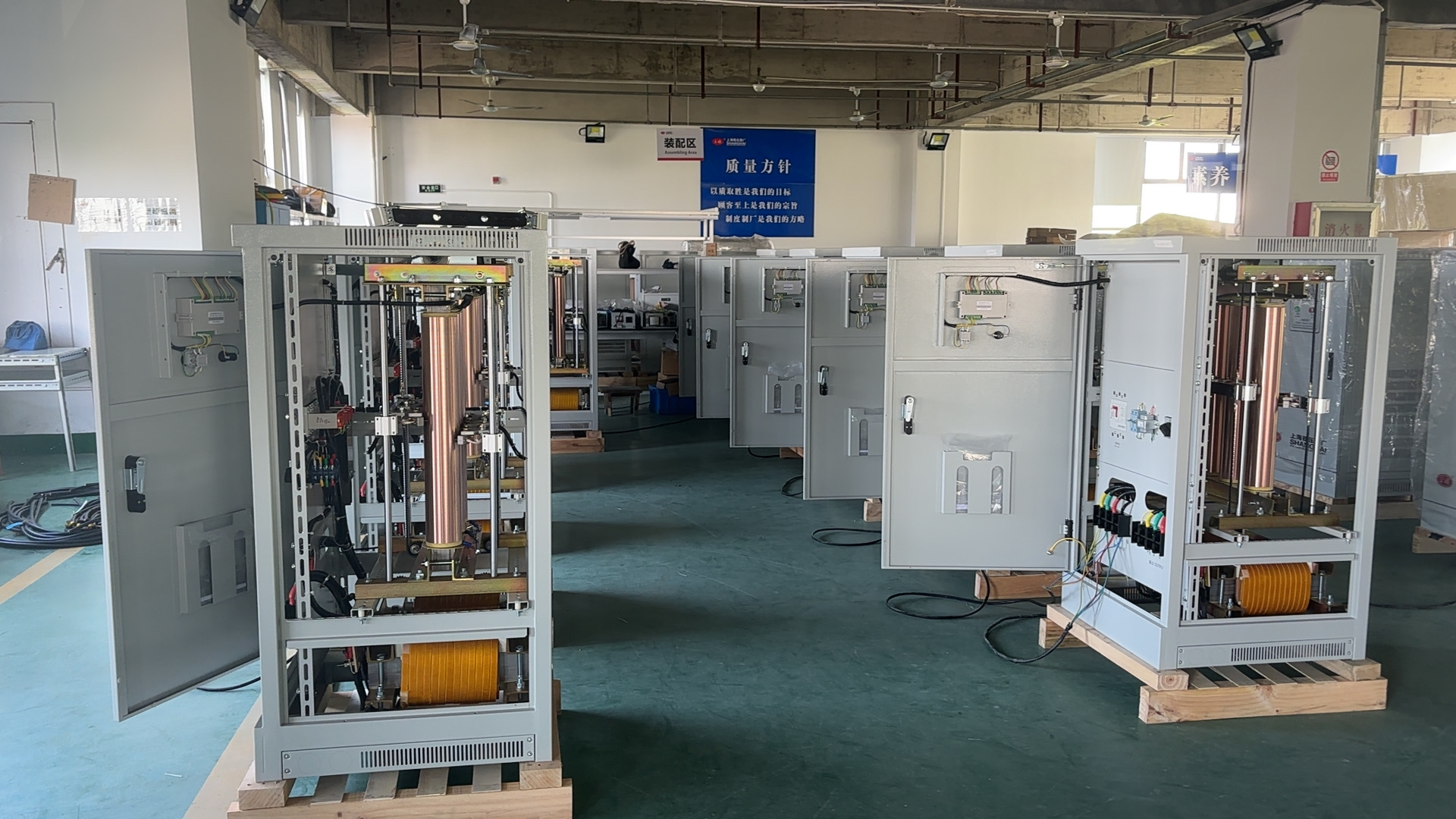

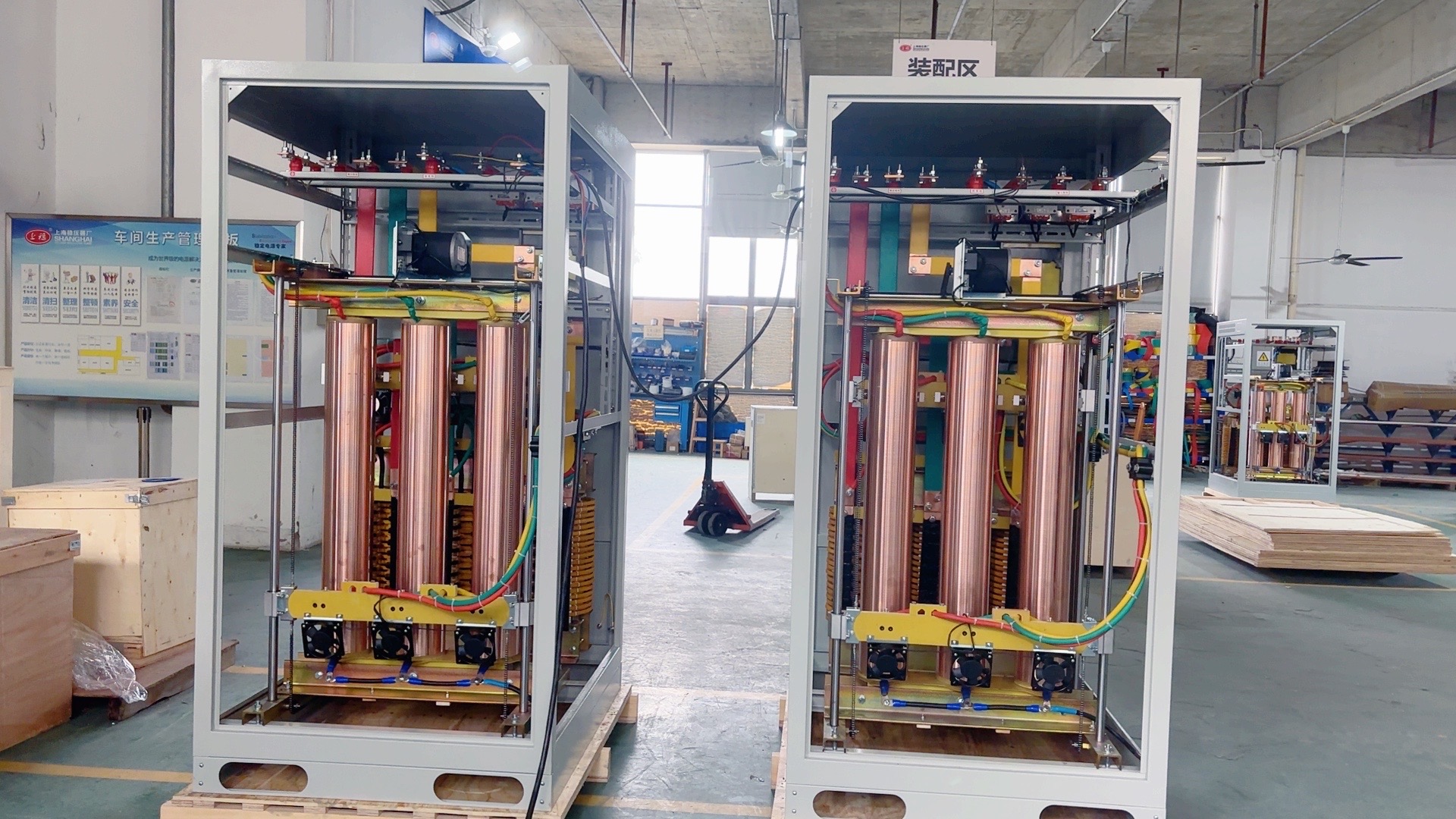

Columnar design with automatic servo motor controlled by microprocessor
Efficiency upto 99%
Independent or dependent Three Phase Regulation available
Temperature controlled cooling system

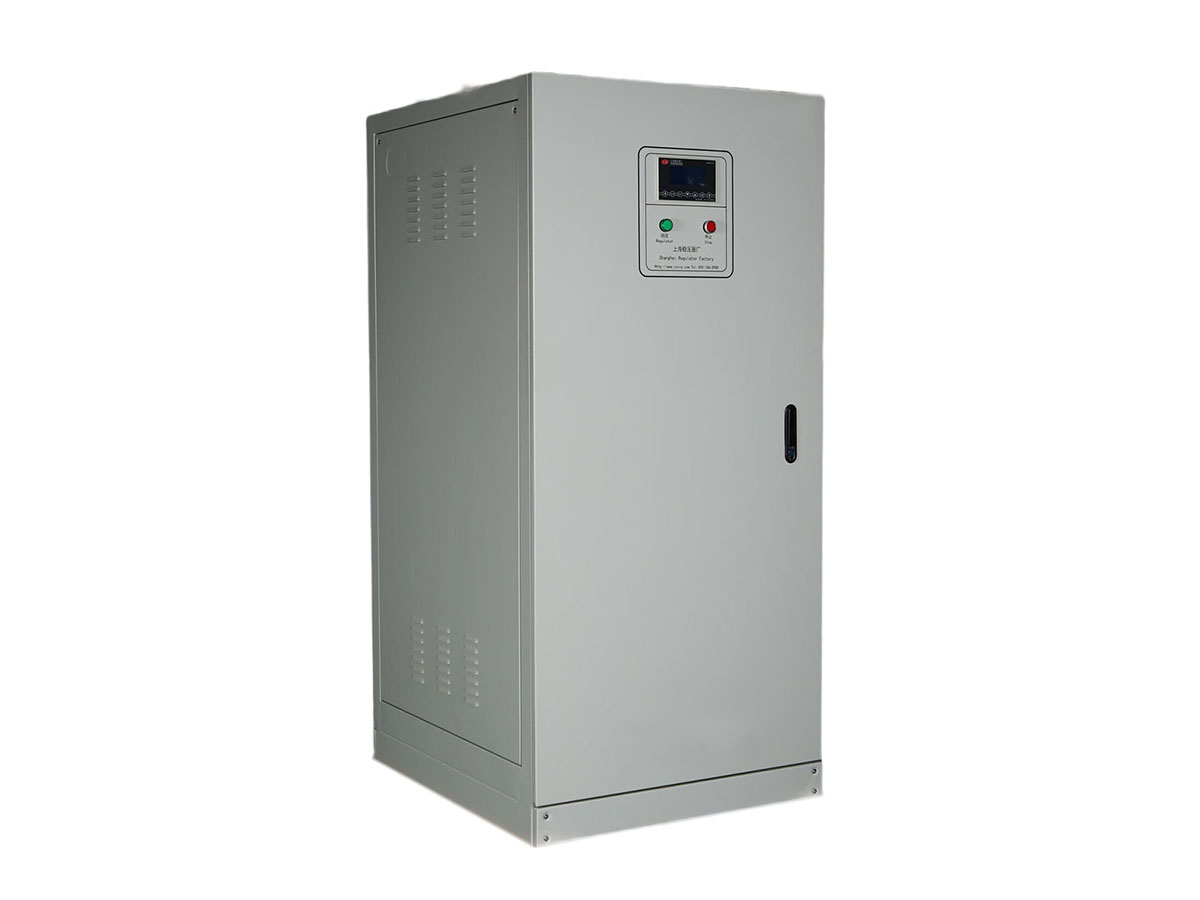

Digital Display
Full protection including over voltage, under voltage, over current, short circuit
Auto bypass or Manually bypass available (optional )
EMI/RFI filter ( optional )
Surge protection ( optional )
Remote control with RS232, 485 ( Optional )
|
Model Number |
OptiV PLUS 3kVA to 3000kVA |
|
Ratings |
Single phase: 3kVA(14A), 5kVA(23A), 10kVA(46A), 20kVA(91A), 30kVA(137A), 50kVA(228A), 100kVA(455A), 180kVA(818A), 225kVA(1023A), 300kVA(1364A) Three phase: 10kVA(16A), 20kVA(31A), 30kVA(46A), 50kVA(76A), 80kVA(122A), 100kVA(152A), 150kVA(228A), 180kVA(274A), 225kVA(342A), 320kVA(487A), 400kVA(608A), 500kVA(760A), 600kVA(912A), 800kVA(1216A), 1000kVA(1520A), 1200kVA(1824A), 1600kVA(2431A), 2000kVA(3038A), 2500kVA(3800A), 3000kVA(4560A) |
| Input Voltage | 220V/380V / 400V/415V/480V or else +/- 10%/15%20%/25%/30%/40% |
| Output Voltage | 220V/380V / 400V/415V/480V or else +/- 1% to 5% ,according to order |
| Insulation |
Single phase: 1500V, 5mA , withstand for 60 secs Three phase: 2000V, 10mA, withstand for 60 secsMin |
| Insulation to earth | ≥3 MΩ |
| Efficiency | Upto 99% |
| Workable Frequency | 45 to 66 Hz |
| Output voltage Accurancy | 1% to 5%, subject to the order |
| Enclosure |

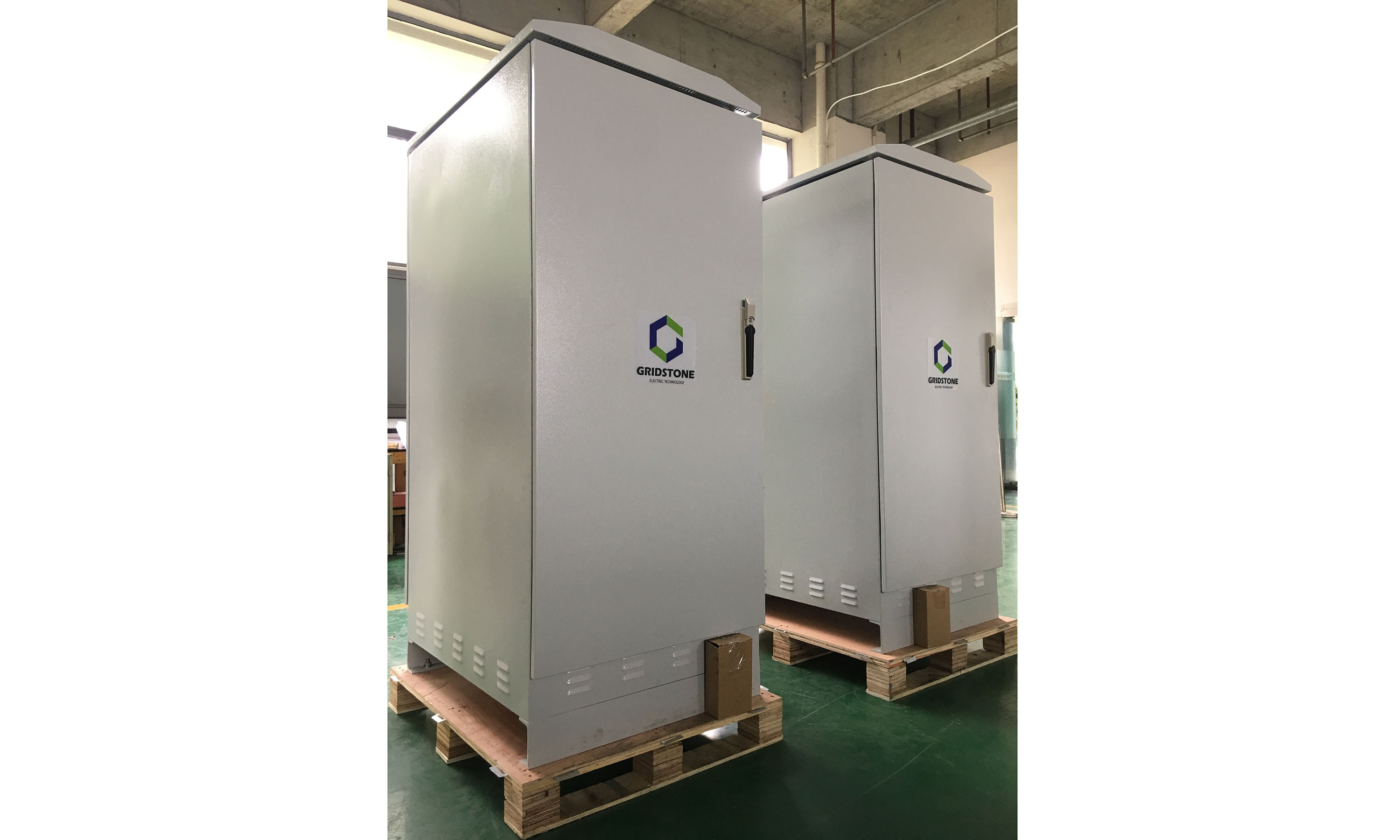

Indoor IP21 Outdoor enclosure available according to order. |
| Protection | Over voltage, under voltage, over current, short circuit |
|
Working Environment Temperature |
-15℃ to +45℃； |
|
Altitude |
<1000m |
|
Humidity |
≤90% |
