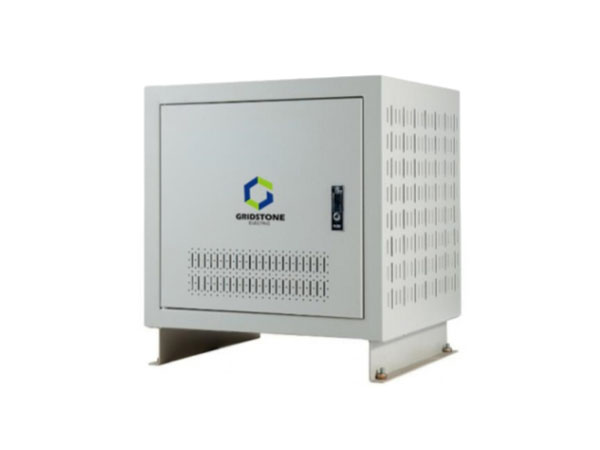

OptiV LITE
Reduces carbon emissions Manages Phase balancing Protect against damaging transients (power spikes) Reduce operating temperatures of motors. Improves life expectancy of equipment and reduces maintenance costs
GridStone OptiV LITE optimization systems are ideal for companies with the following profile;
The site has a low voltage (LV) supply only
The site has only a high level of incoming voltage or only a low level of incoming voltage.
The site has a stable voltage profile
If the OptiV LITE optimization system does not fit your requirements then have a look at our GridStone OptiV Max，OptiV Plus and Opti V&F solutions.
|
Input Voltage |
415V (3 phase) |
|
Rating Range |
from 30kVA to 630kVA |
|
Frequency |
50Hz |
|
Output Voltage |
Input voltage less selectable voltage tapping to suit site requirements. |
|
Voltage Tappings |
A range of voltage taps are provided to allow voltage adjustment. Standard products have 1 or 2 taps. |
|
Ambient Temperature |
-10?C to +45?C |
|
Ingress Protection (IP) |
IP22 (transformer) IP43 (cabinet) Higher IP can be provided depending on site conditions |
|
Location |
Indoor (Outdoor design available according to order) |
|
Overload Capability |
120% for 30 minutes |
|
Thermal Devices |
Included to monitor transformer core temperatures. (Thermal measuring device is optional.) |
